Bending roll machine 8263
General information

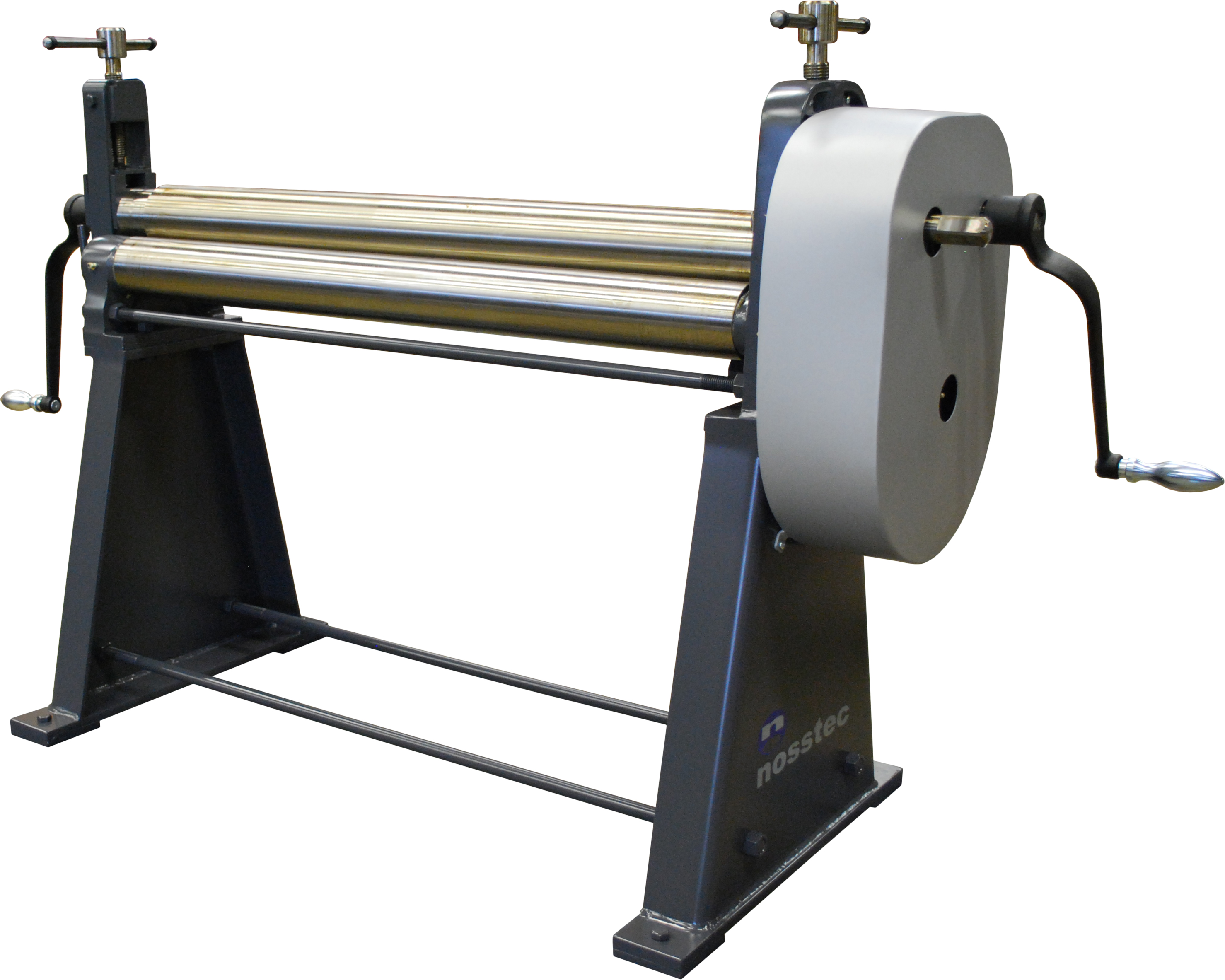

Suitable for production of less demanding profiles, the 8263 is a manually operated machine made of cast iron. The lower rolls are fixed mounted while the upper roll is adjustable by means of two screw spindles. One side bracket can be bent outwards for the removal of finished piping.
- Basic and robust
- Cone bending optional
- Crowned rolls
- Heavy duty production
Technical data
| Art.no. | 8263 | -1035 | -1050 | -1060 | -1230 | -1240 | -1250 | -1525 | -1535 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 10/35 | 10/50 | 10/60 | 12/30 | 12/40 | 12/50 | 15/25 | 15/35 | |

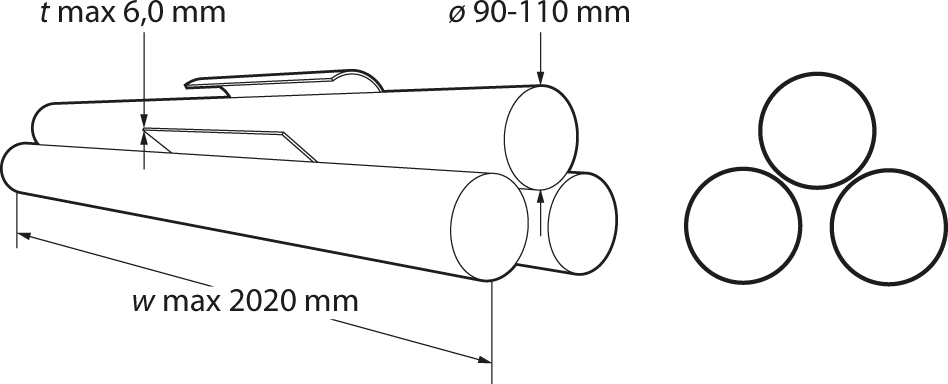

| Working length (w) | mm | 1020 | 1020 | 1020 | 1270 | 1270 | 1270 | 1525 | 1525 |
| Max sheet thickness (400N/mm²) (t) | mm | 3,5 | 5,0 | 6,0 | 3,0 | 4,0 | 5,0 | 2,5 | 3,5 |
| Diameter of rolls (ø) | mm | 90 | 100 | 110 | 90 | 100 | 110 | 90 | 100 |
| Net weight | kg | 295 | 410 | 460 | 330 | 450 | 510 | 355 | 490 |
| OPTIONS | |||||||||
| Hardened and ground rolls | 826377 | -1035 | -1050 | -1060 | -1230 | -1240 | -1250 | -1525 | -1535 |
| Cone bending equipment | 8263 | -2605 | -2605 | -2605 | -2605 | -2605 | -2605 | -2605 | -2605 |
| Art.no. | 8263 | -1540 | -1715 | -1725 | -1730 | -2010 | -2015 | -2020 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 15/40 | 17/15 | 17/25 | 17/30 | 20/10 | 20/15 | 20/20 | |
| Working length (w) | mm | 1525 | 1770 | 1770 | 1770 | 2020 | 2020 | 2020 |
| Max sheet thickness (400N/mm²) (t) | mm | 4,0 | 1,5 | 2,5 | 3,0 | 1,0 | 1,5 | 2,0 |
| Diameter of rolls (ø) | mm | 110 | 90 | 100 | 110 | 90 | 100 | 110 |
| Net weight | kg | 560 | 400 | 530 | 610 | 435 | 570 | 660 |
| OPTIONS | ||||||||
| Hardened and ground rolls | 826377 | -1540 | -1715 | -1725 | -1730 | -2010 | -2015 | -2020 |
| Cone bending equipment | 8263 | -2605 | -2605 | -2605 | -2605 | -2605 | -2605 | -2605 |
Accessories

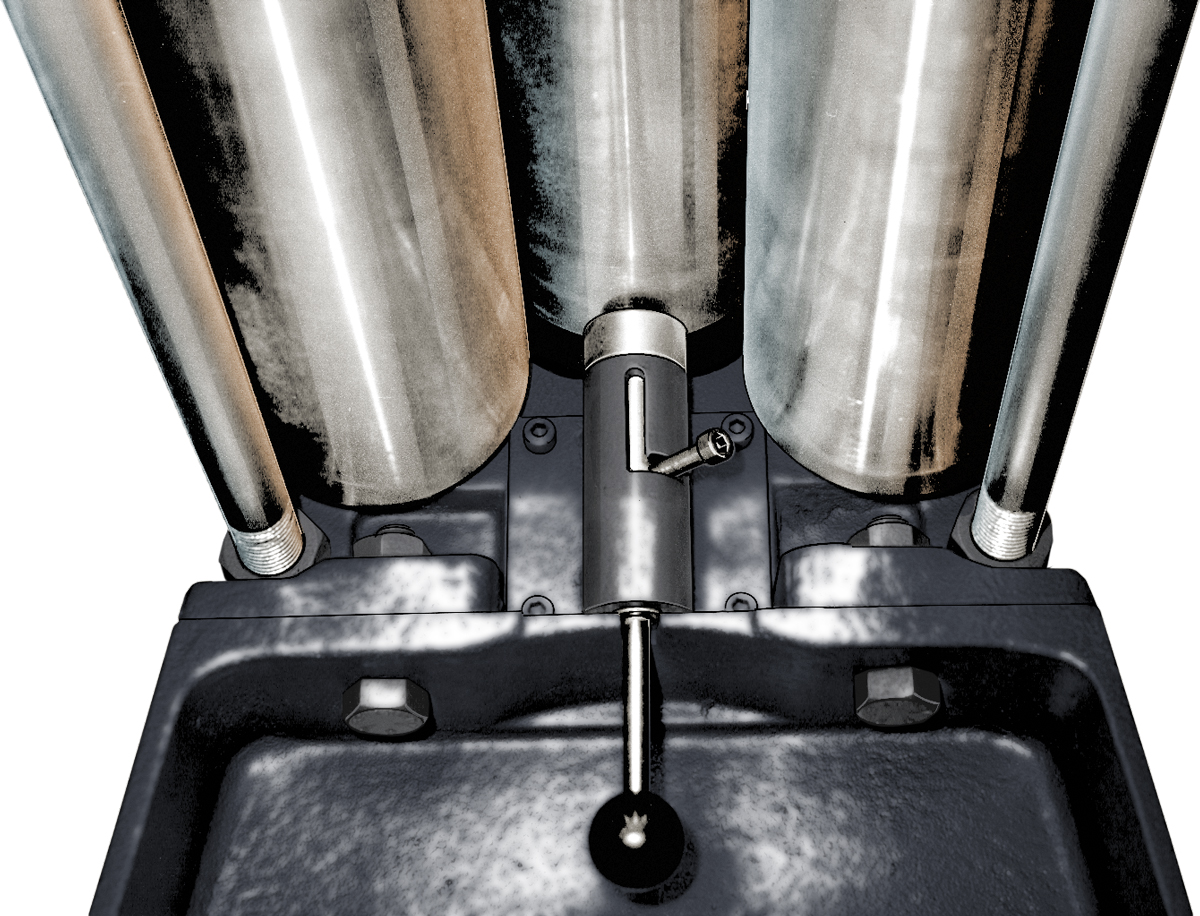

Cone bending equipment
Equipment for diagonal setting of upper roll.
Hardened and ground rolls
Used when working with hard materials like stainless steel. Induction-hardened to a depth of min 3mm, 57HRC hardness.
Support
For support documents, see the product support page.
